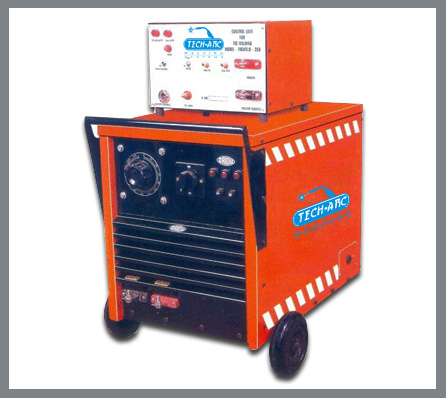

DC TIG WELDING MACHINES



Current rating : 200-600 amps. 80 volt DC, with HF unit, water cooled and air cooled torches with all standard accessories.

Applications : Stainless steel and mild steel welding.


MODEL Ge 200 400 600
SUPPLY v 415± 10% 415± 10% 415± 10%
PHASE Ph 3 3 3
FREQUENCY Hz 50 50 50
LOAD KVA 14 20 26
MIN. CURRENT A 15 20 30
MAX. CURRENT A 200 400 600
OCV V 90 90 90
WEIGHT Kg 130 150 180
