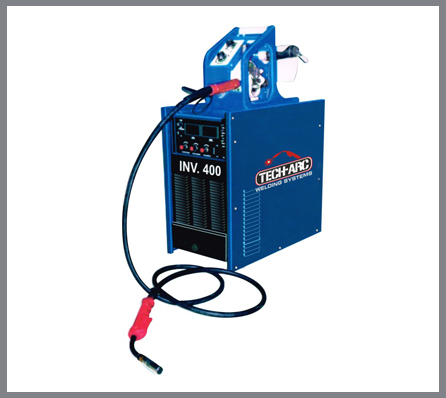

- Portable, Compact and Light Weight
- Excellent Arc Characteristics on both solid and Flux Cored wires.
- Delivers Smooth and stable are even at Lower Current Save Electricity Cost
- Unique integrated Adjustment control offer automatic Control in.
- Welding current when arc voltage is changed due to hand movement.
- Very low spatters due to inverter based power source.
- Fresh Arc Start, Smooth and optimum bead shape.
- 100 % indigenous & service possible up to component level in printed circuit boards.
- Capable of welding all types of metal like SS, MS & AI etc.
- An excellent machine for Mig Brazing application also.
- Digital Amps and Volts Meter For accurate and Precise Setting.
|
|
| WIRE FEEDER : Low inertia and high Torque Printed Circuit Motor allows very smooth wire feeding. Dynamic braking is controlled through Transistor switching ensures the longer life of motor with min overrun of wire. Very light weight wire feeder weight only 9 Kgs. Aluminum cast Feed roll block with single pressure touch system for various dia of wires. Remote Control mounted on the wire feeder eliminates the use of remote control cable thus increased reliability and min. change of breakdown. |
| |
|
| MODEL |
MIG - 250 |
MIG - 400 |
MIG - 600 |
| Mains Voltage |
415+ 10%, 50 Hz, 3P |
415+ 10%, 50 Hz, 3P |
415+ 10%, 50 Hz, 3P |
| Input Power |
8.5 KVA |
17.0 KVA |
33.0 KVA |
| Input Current (Mas) |
12 A |
24 A |
46 A |
| Open Current Voltage |
12 - 36 V |
12 - 44 V |
12 - 44 V |
| Consumption at 60% (max) |
|
|
|
| Welding current range |
50 - 250 A |
50 - 400 A |
50 - 400 A |
| Welding current at 60 % Duty Cycle |
250 A |
400 A |
600 A |
| Welding current at 100 % Duty Cycle |
195 A |
310 A |
465 A |
| Insulation Class |
H |
H |
H |
| Cooling |
Fan |
Fan |
Fan |
| Dimension (L X W X H) |
475 x 310 x 425 |
525 x 310 x 475 |
600 x 350 x 500 |
| Weight |
300 Kg. |
45 Kg. |
65 Kg. |
| Wire Feeder |
250 |
400 |
600 |
| Type of Motor |
24 V DC |
24 V DC |
24 V DC |
| Wire Feed Mechanism Type |
Printed Armature Pancake Type |
| Drive System |
2 Roll Quick Release Pulse Width Control DC Drive |
| Wire Size (dia) |
0.8 - 1.2 mm |
0.8 - 1.6 mm |
0.8 - 0.2 mm |
| Weight |
9 Kg. |
9 Kg. |
9 Kg. |
| Torch |
|
|
|
| Rated Current |
250 A |
400 A |
600 A |
| Cooling |
GC |
GC |
GC |
| Cable Length |
3 Mtr. |
3 Mtr. |
3 Mtr. |
|
| |
|
