SPOT WELDING MACHINE
 |
|

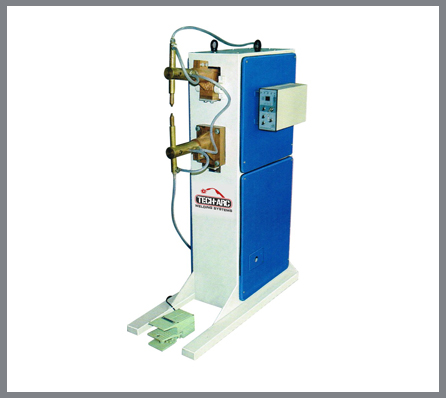

| 5 K.V.A. to 35 K.V.A. Note : S.C.R. Can be Provided on request |

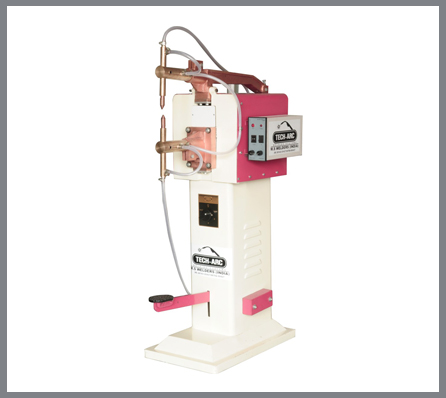

5 K.V.A. to 30 K.V.A. Note : S.C.R. Can be Provided on request |
INTRODUCTION |
|
| Spot Weld's Rocker Rite resistance rocker arm type welder is widely used by the metalworking industries today because of its extreme versatility. This general purpose machine represents a new high achievement in welder design and engineering, and embodies advantages which afford the greatest performance. Its modern design has incorporated ruggedness, accuracy, and reliable uninterrupted performance – all of which are of utmost importance to high production rate. Note :- Electronic panel for cut-off supply can be provided on request. |
|
| DESIGN | |
| The Rocker Rite style welders are going to be your most economical type of resistance welder, and will have the ability to reach into spaces a press style welder cannot. | |
| KVA Sizes : 10,15,20,25,30 | |
| Power Supply : 220 or 440 V, 50 or 60 Hz | |
| Throat Depths : 8' , 10', 12”, 18”, 24”, 30”, 36” or 42” | |
| Horns(Rods) : Hard drawn high conductivity copper, universal reversible, 2-1/2” diameter | |
Electrode Holders : Water cooled, ejector type, furnished as standard on all machines.
|
|
| Frame : Rugged, heavy gauge, one-piece, all steel body, strongly reinforced with welded stiffeners and ribs on heavy duty base. | |
| Foot Switch : Manual Peddal Operated and Air Operated | |
